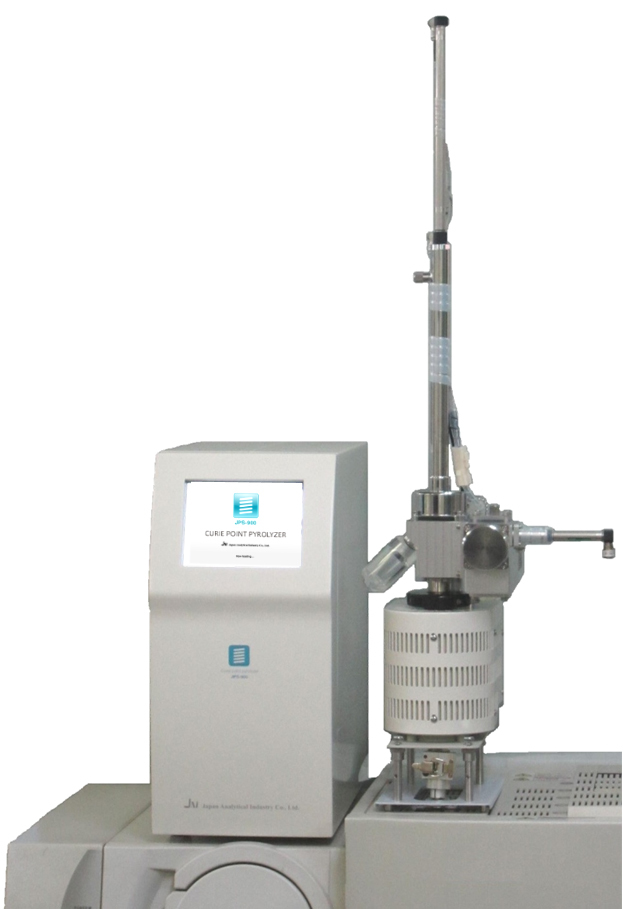

JPS-900
JPS-900
Pyrofoil Auto Sampler
Pyrofoil Auto Sampler
Automate your operation
Up to 40 samples can be set at a time. It saves a lot of time for routine analysis and gives more reliable chromatograms compare to manual models. JPS-900 promises you to obtain high reproducibility and quantitativity with easily weighed amount of sample with pyrofoils and it supports absolute quantification too.
High reproducibility
Pyrolysis of polar polyacrylate at 590°C gave less than 3% coefficient of variation at its monomer.
Temperature range
Curie point heating supports pyrolysis temperature in the wide range of 160 to 1040°C. In addition, JHP-5 oven temperature raises up to 400°C to analyze high boiling temperature compounds sensitively.
Features
Simple operation and easy handling.
Easy to lift-up the oven unit and replace sample tube.
Poorly-soluble compounds such as vulcanized rubber, engineering plastics, nylon, etc can be analyzed directly without dissolving in a solvent.
Compatible to all major GC models
* JAI pyrolyzers are not subject to obtain individual permission of Industrial Facilities Emitting Radio Waves.
Automate your operation
Up to 40 samples can be set at a time. It saves a lot of time for routine analysis and gives more reliable chromatograms compare to manual models. JPS-900 promises you to obtain high reproducibility and quantitativity with easily weighed amount of sample with pyrofoils and it supports absolute quantification too.
High reproducibility
Pyrolysis of polar polyacrylate at 590°C gave less than 3% coefficient of variation at its monomer.
Temperature range
Curie point heating supports pyrolysis temperature in the wide range of 160 to 1040°C. In addition, JHP-5 oven temperature raises up to 400°C to analyze high boiling temperature compounds sensitively.
Features
Simple operation and easy handling.
Easy to lift-up the oven unit and replace sample tube.
Poorly-soluble compounds such as vulcanized rubber, engineering plastics, nylon, etc can be analyzed directly without dissolving in a solvent.
Compatible to all major GC models
* JAI pyrolyzers are not subject to obtain individual permission of Industrial Facilities Emitting Radio Waves.
Specifications
| Oven unit | |
| Max sample loading | 40 samples (40 Pyrofoils) |
| Loading system | Foil magazine method |
| Sample retrieve | Pick up by electromagnetic stick |
| Air purge | 2 points |
| Air plunger | 2 set (Require higher than 0.4MPa) |
| Oven temp. | Max at 400°C |
| Needle heater | Max at 350°C |
| Supported GC | Compatible to all major GC models |
| Dimension | 254(W) x 780(H) x 250(D) mm |
| Weight | 6.5 Kg |
| Power | From controller |
| Controller unit | |
| Heating method | Curie point heating |
| Output | GC remote start signal |

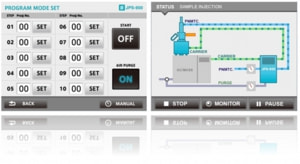

| Operation Panel | 5.7 inch LCD tough panel |
| Pyrolysis period | 1 to 999 seconds |
| Analysis interval | Control on touch panel |
| Purge valve | Control on touch panel |
| Heater control | Control on touch panel |
| Dimension | 180(W) x 390(H) x 450(D) mm |
| Weigth | 15 Kg |
| Power | AC85 - 240V, 800VA (Max) |
| Oven unit | |
| Max sample loading | 40 samples (40 Pyrofoils) |
| Loading system | Foil magazine method |
| Sample retrieve | Pick up by electromagnetic stick |
| Air purge | 2 points |
| Air plunger | 2 set (Require higher than 0.4 MPa) |
| Oven temp. | Max at 400°C |
| Needle heater | Max at 350°C |
| Supported GC | Compatible to all major GC models |
| Dimensions | 254(W) x 780(H) x 250(D) mm |
| Weight | 6.5 Kg |
| Power | From controller |
| Controller unit | |
| Heating method | Curie point heating |
| Output | GC remote start signal |
| Operation Panel | 5.7 inch LCD tough panel |
| Pyrolysis period | 1 to 999 seconds |
| Analysis interval | Control on touch panel |
| Purge valve | Control on touch panel |
| Heater control | Control on touch panel |
| Dimensions | 180(W) x 390(H) x 450(D) mm |
| Weight | 15 Kg |
| Power | AC85 - 240V, 800VA（MAX） |
